You back out of the driveway and there is a red spot on the concrete where the car was parked. Or the shifts feel late, and the shop tells you the transmission is leaking.
So how much does a transmission leak repair cost? About $150 to $700 at a shop for most leaks: a pan gasket, a cooler line, or a seal where a shaft leaves the transmission. A torque converter seal is $600 to $1,200.
In this guide I will show you what each kind of leak costs at a shop, what the Toyota parts cost, what owners paid, and why a small leak should not wait.
Is It Transmission Fluid?
Irish Mike’s Total Car Care, a repair shop in Orlando, Florida, gives these signs of a transmission leak:
- Red or brown fluid under the car.
- A burning smell while you drive.
- Gears that slip or shift late.
- A transmission that overheats.
- Warning lights on the dashboard.
To find where it leaks, the shop follows the fluid trail, uses UV dye, and checks the seals, the gaskets and the cooler lines.

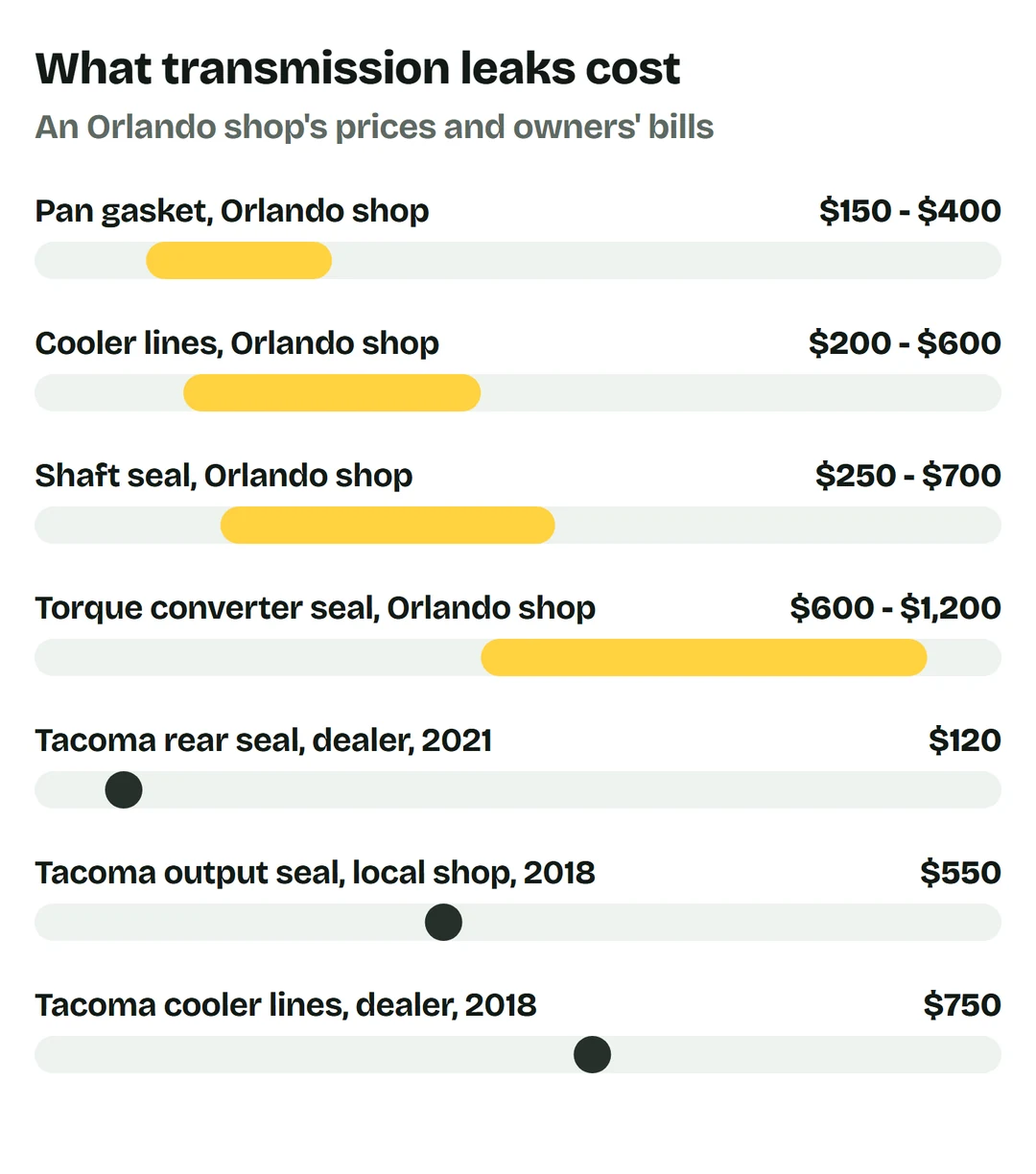

What Each Leak Costs at a Shop
The same Orlando shop gives these prices by where the leak is, on a page from January 30, 2026:
Some leak repairs need the whole transmission taken out, the shop writes, and that is where the labor and the price climb. A repair that starts at $300 can grow a lot once the job needs that much taking apart.
Trucks, imports and luxury cars often cost more too, because of their labor and their parts.
What the Parts Cost
The parts for the outside leaks are cheap. Here are Toyota’s own parts from ToyotaPartsDeal, a Toyota dealer’s parts website, checked October 7, 2026:
So most of a leak bill is labor. Tekmetric, a company that makes software for repair shops, found the average US labor rate was $132 an hour in June 2026.
A Tacoma owner wrote that an output shaft seal is about $10 and an hour of time. At $132 an hour that is about $10 + $132 = $142, if the seal is the only problem.
What Owners Paid
Here is what Tacoma owners paid or were quoted, with links to their posts on Tacoma World:
- The owner of a 2014 Tacoma had leaks at the transmission output shaft seal and two transfer case seals. The Toyota dealer offered to fix all three for $780, in September 2018.
- A local shop then found that only the output shaft seal needed replacing, for $550, mostly labor. A transmission shop quoted $1,190 for all three seals.
- In a 2021 thread about a leaking transmission rear seal, one owner had paid $120 at a dealership.
- A dealer asked $750 to replace cracked cooler lines in December 2018. Another owner bought the lower line from the dealer for $38 and fixed it at home in August 2019.
- A mechanic quoted $7,500 for a replacement transmission, $5,600 for the unit and $1,400 for labor, for a pump seal leak on a Tacoma with 225,000 miles, in July 2024.
- In the same thread, the owner of a 2010 Tacoma had paid just over $2,400 for a used transmission with 22,000 miles, including the labor and a new rear main seal.
So before you agree to a new transmission for a leak, ask whether the seal alone can be replaced.
Another owner in that thread advised that if the transmission still shifts fine, the leak can be repaired, with no more than $600 in parts in the worst case.
Why a Small Leak Should Not Wait
The Orlando shop warns that low fluid makes the transmission overheat and wear inside. That can turn a simple leak repair into a rebuild that costs several thousand dollars.
It also advises getting the car inspected instead of topping up the fluid again and again.

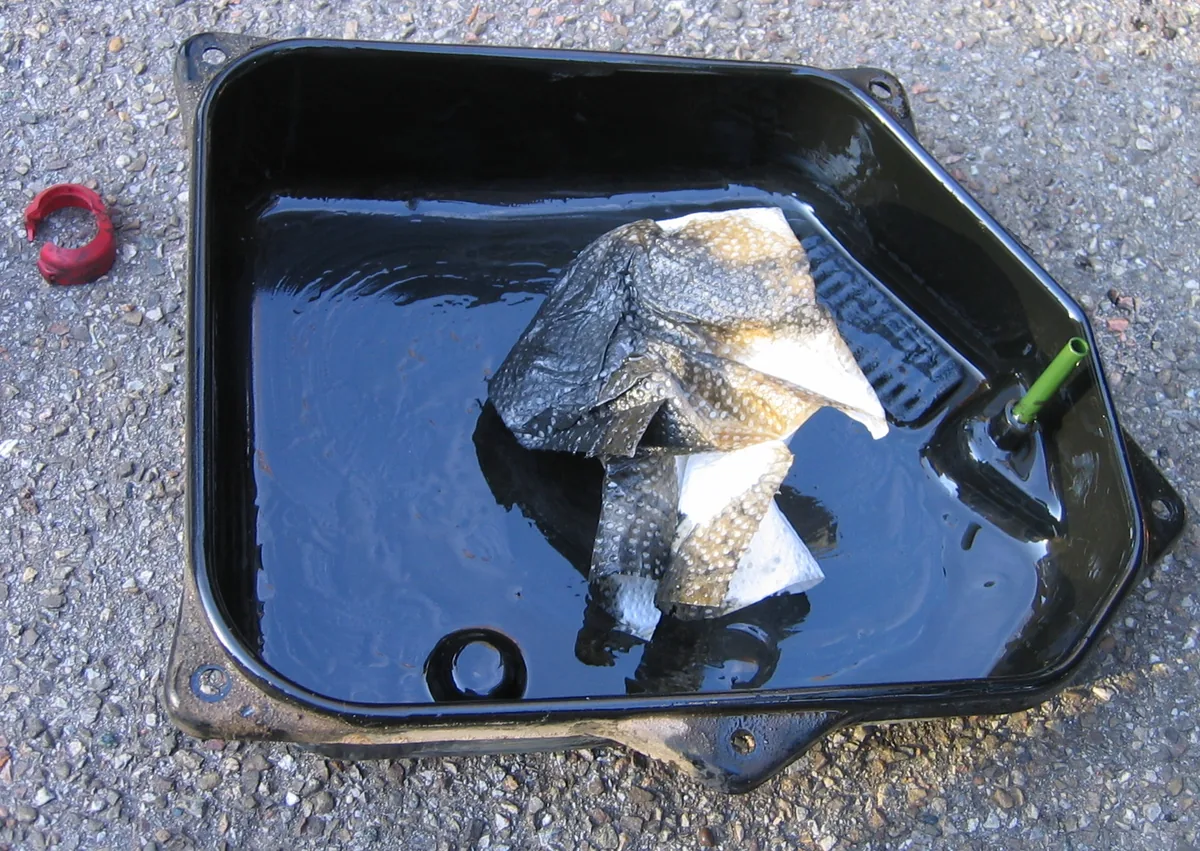

Some small leaks, such as loose pan bolts, can be fixed with a simple adjustment, the shop writes. Most need seals, gaskets, proper tools and lifting equipment.
A stop-leak bottle costs little. For the pump seal leak above, a Tacoma owner suggested trying ATP’s AT-205 Re-Seal, $24 for 8 ounces, before paying for a transmission.
Answers to the Questions Owners Ask
How much does it cost to fix a transmission leak?
About $150 to $700 at a shop for most leaks, by Irish Mike’s Total Car Care in Orlando. That is $150 to $400 for a pan gasket, $200 to $600 for cooler lines and $250 to $700 for a shaft seal. A torque converter seal is $600 to $1,200.
Is it safe to drive with a transmission leak?
Not for long. Low fluid makes the transmission overheat and wear inside, and the Orlando shop warns that this can turn a leak repair into a rebuild costing several thousand dollars.
What color is a transmission fluid leak?
Red or brown fluid under the car is one of the signs the Orlando shop gives for a transmission leak.

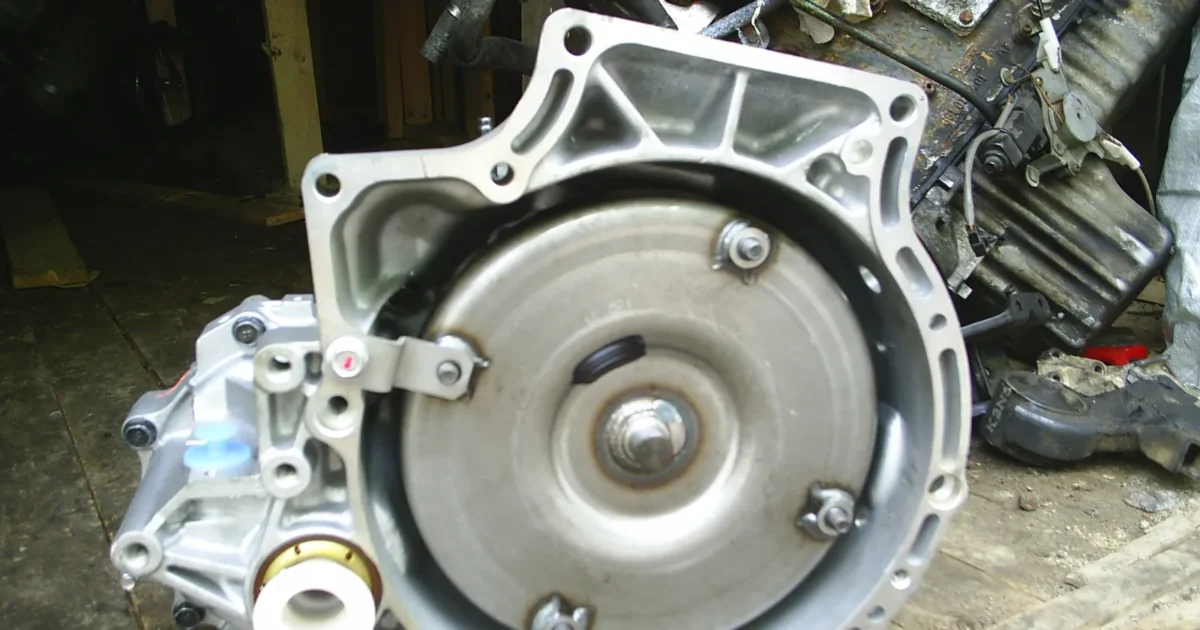

Why does a torque converter seal cost so much more?
Some leak repairs need the whole transmission taken out. A mechanic quoted one Tacoma owner $1,400 in labor alone to take the transmission out for a pump seal leak in 2024.
Can I fix a transmission leak myself?
Loose pan bolts, sometimes. The Orlando shop writes that most leaks involve seals, gaskets or internal parts that need proper tools and lifting equipment.
Where These Prices Come From
- Irish Mike’s Total Car Care, Transmission Leak Repair Cost: What You Should Pay, January 30, 2026.
- ToyotaPartsDeal, transmission pan gasket 35168-60010, cooler inlet tube 32921-04100 and cooler outlet tube 32922-04100, checked October 7, 2026.
- Tekmetric, Average Auto Repair Labor Rates by State, June 30, 2026.
- Tacoma World, Replace Transmission Output Shaft Seal cost question (2018), Replacing leaking transmission cooling lines (2018 and 2019), Transmission rear seal leak (2021) and Leaking Transmission Pump Seal = Replace Transmission?? (2024).
I hope this helps you judge the quote for your leak before you pay. If you have any questions, you can email me at costcheckr@gmail.com.
