Rear Axle Seal Replacement Cost

You found drops of dark oil under the back of your truck or car, near a rear wheel or under the differential. A leaking axle seal or pinion seal is the usual cause, and the seal itself costs little.

So how much does it cost to replace a rear axle seal? Irish Mike’s, a repair shop in Orlando, charges $150 to $350 for an axle seal and $200 to $400 for a pinion seal, which needs the driveshaft off.

Luxury Auto Works in Austin charges $180 to $450 for differential or axle seals with the fluid service.

Before you pay, check for a free fix. Jeep replaces a leaking right rear axle shaft on some 2021 and 2022 Gladiators.

Toyota tightens loose axle nuts on some 2022 Tundras and 2022 and 2023 Tacomas, where an oil leak can be the first sign.

In this guide I will show you what shops charge, how to find where the oil comes from, which free fixes to check and what owners paid.

What Repair Shops Charge

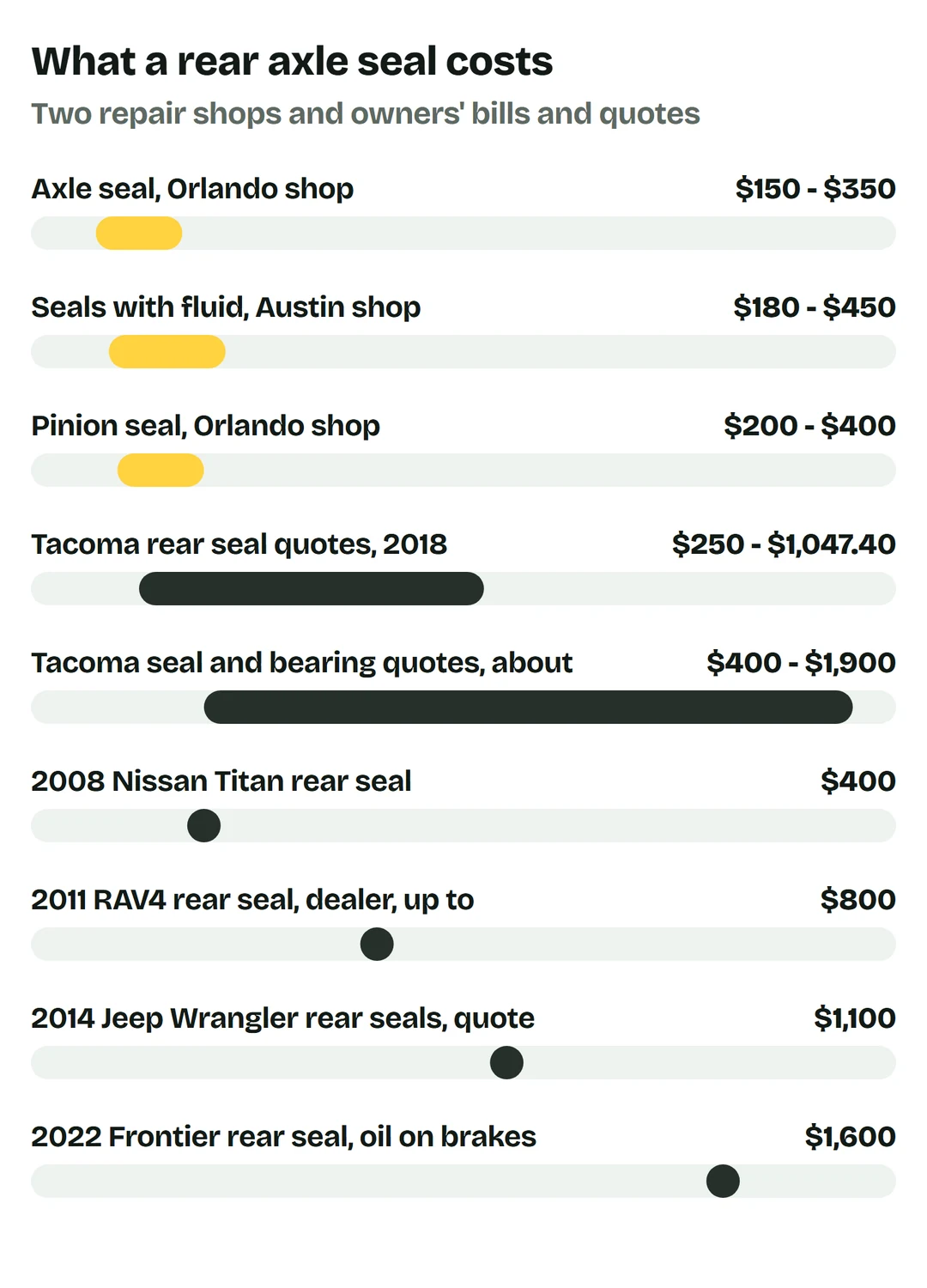

Here are the two shops’ prices from 2026:

The seal is cheap, and the labor depends on how hard the axle is to get at, the Orlando shop says. When the bearing at the wheel end is worn too, the Austin shop charges $350 to $800 per corner for a wheel bearing or hub.

Find Where the Oil Comes From

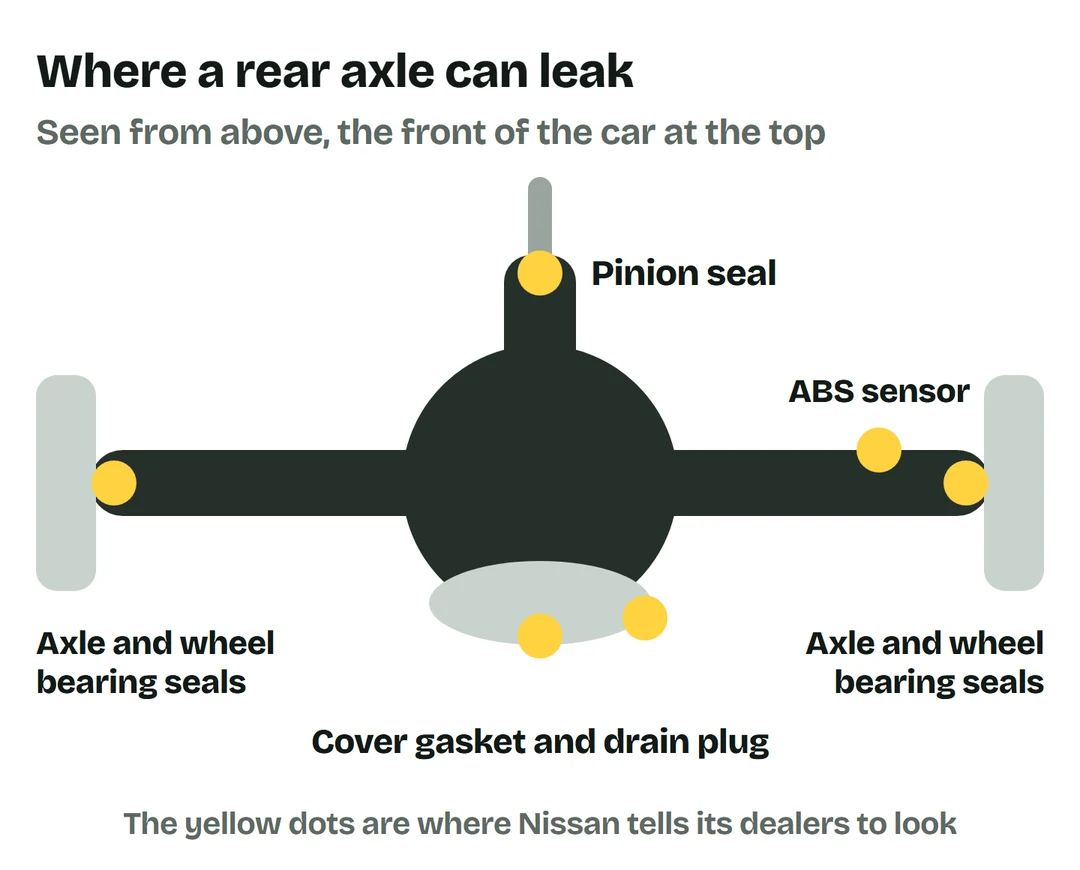

A rear axle can leak from more places than the seals. Nissan’s list for the Titan pickup covers the pinion seal at the front, the axle tube seals, the wheel bearing seals, the ABS wheel sensors, the cover gasket and the drain plug.

A leak at a wheel bearing seal shows up behind the brake rotor, and a cracked ABS sensor or its O-ring can leak gear oil too.

Nissan tells its dealers to find and fix the leak first, and not to replace the whole axle unless a bearing or gear is damaged.

On a new truck, oil around the pinion seal may not be a leak at all. Ford found that some 2018 and 2019 F-150, Super Duty and Transit axles were shipped to the plant pinion down, which can leave oil around a good seal.

Its dealers clean the area, run the truck for 10 minutes and look again before replacing anything on trucks with under 500 miles or 3 months of use.

Free Fixes to Check First

Jeep found that the right rear axle shaft on about 53,828 Gladiators from 2021 and 2022 can start leaking oil after 10,000 miles.

Dealers inspect it and replace the axle shaft free, and Jeep asks owners to have it checked once the truck reaches 10,000 miles.

Owners who already paid for this repair can ask FCA to pay them back, through its recall reimbursement website.

Jeep pays its dealers 0.7 hour to replace that axle shaft, which would be $92.40 at $132 an hour, Tekmetric’s US average from June 2026.

Toyota recalled about 381,199 Tacomas from 2022 and 2023 because weld spatter can let the rear axle shaft nuts loosen. Owners may notice a noise, a vibration or an oil leak from the rear.

The dealer inspects the axle and tightens the nuts free, in about an hour.

About 46,176 2022 Tundra and Tundra Hybrid pickups had the same kind of recall for loose axle flange nuts, with leaking differential oil as one of the signs. NHTSA’s recall lookup shows any open recall by VIN.

What Owners Paid

Here is what owners paid or were quoted, on Tacoma World and in complaints to NHTSA, the US road safety agency, with a link to each:

• A rear axle seal on a Toyota Tacoma was quoted at about $250 by a local shop, $350 by the dealer and $1,047.40 by another shop, on Tacoma World in August 2018.
• Another Tacoma owner was quoted just under $400 for a rear seal and bearing with a differential service at an independent shop, and just under $1,900 at Toyota with new rear brake shoes, on Tacoma World in August 2022.
• A leaking left rear axle seal on a 2008 Nissan Titan was replaced for $400, after the oil softened the tire until it blew out on the highway, filed in August 2010.
• A leaking left rear seal on a 2011 Toyota RAV4 could cost as much as $800 at the local Toyota dealer, filed in February 2017.
• A 2014 Jeep Wrangler owner who paid $1,100 for leaking front axle seals was facing another $1,100 for the rear seals four months later, filed in July 2020.
• The left rear axle seal of a 2022 Nissan Frontier leaked over the brakes and rotors at 27,000 miles, failed a state inspection and cost $1,600 to repair, filed in June 2025.

So owners paid or were quoted $250 to $1,600. The higher ones were dealer quotes or jobs where a bearing or the brakes were involved, and both Tacoma owners found a shop far below their highest quote.

Why You Should Not Wait

A seal caught early is a cheap repair. Left until the oil level drops, it can damage the gears and bearings and turn a minor repair into a major one, the Orlando shop warns. A whole rear differential costs thousands.

Oil from a leaking axle seal can also reach the brakes, the Austin shop says. Have a wet wheel or backing plate checked before it soaks the brakes.

Rear Axle Seal Questions You Might Have

Where These Prices Come From

• Irish Mike’s Automotive, Rear Differential Repair Cost, Orlando, Florida, April 20, 2026. Luxury Auto Works, Axle Repair, Austin, Texas, August 28, 2026.
• Nissan NTB24-007 (January 2024), Ford SSM 47903 (2019), Jeep customer satisfaction notification 26A (August 2023), and Toyota recalls 24V-152 and 22V-445, on NHTSA’s website.
• Tekmetric, Average Auto Repair Labor Rates by State, June 30, 2026, and the owner complaints and posts linked above, read October 14, 2026.

I hope this helps you stop the leak before it costs you a differential. If you have any questions, you can email me at costcheckr@gmail.com.
