Your Explorer’s roof antenna caught the garage door, or the shark fin cover has disappeared. The radio may still work, but you are left with a broken part on the roof and a repair quote to think about.
So how much does a Ford Explorer antenna replacement cost? Three US owners reported quotes or expected costs of $400 to $650 in 2012, 2021 and 2024. These older accounts do not give a current price for every Explorer.
The Ford parts below start at $17.46 for a removable mast at FordPartsGiant. A base assembly is a different repair. I will walk you through the parts, headliner labor and the owner reports.
Which Part of the Antenna Broke?

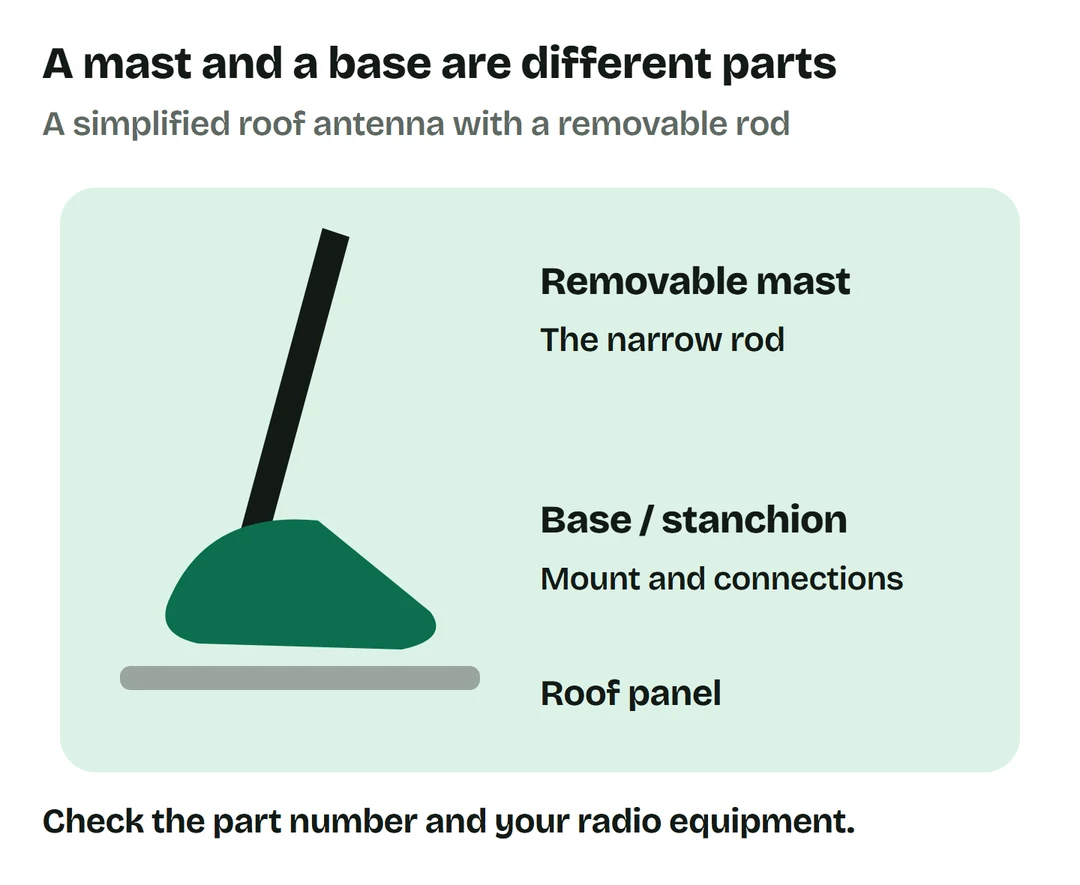

The mast is the narrow rod sticking up from the roof base. If only that removable piece is damaged and the base is sound, you may only need a mast.
A broken mount, loose base or missing shark fin shell needs a closer look. The parts catalog uses names such as “cover,” “stanchion” and “radio aerial support,” so the name alone can be confusing.
Match the part to your VIN and radio equipment before ordering. The Explorer changed across model years, and a fin that looks right is not enough to confirm the electrical connections.
Ford Antenna Parts Prices
These are online selling prices at FordPartsGiant, checked October 17, 2026. They exclude fitting, tax, shipping and any paint work.
The JB5Z-18936-AFPTM listing replaces numerous earlier color-specific numbers. In a reply to a 2019 Explorer buyer, the seller confirms that the replacement must be painted after purchase.
That explains one possible gap between an online part price and a dealer quote. A color-matched job can include paint work as well as access to the antenna from inside the vehicle.
Does the Whole Headliner Have to Come Out?
For the specific repair in Ford bulletin 18-2358, no. Ford instructs technicians to lower the rear of the headliner, rather than remove it completely.
The bulletin covers certain 2018 and 2019 Explorers built on or before November 13, 2018, with a 4G modem. The symptom is lost satellite reception and an “Acquiring Signal” message in unobstructed areas.
Ford allows 1.0 hour for that antenna replacement, including lowering the rear headliner. The procedure includes removing the C-pillar and D-pillar trim to reach the antenna.

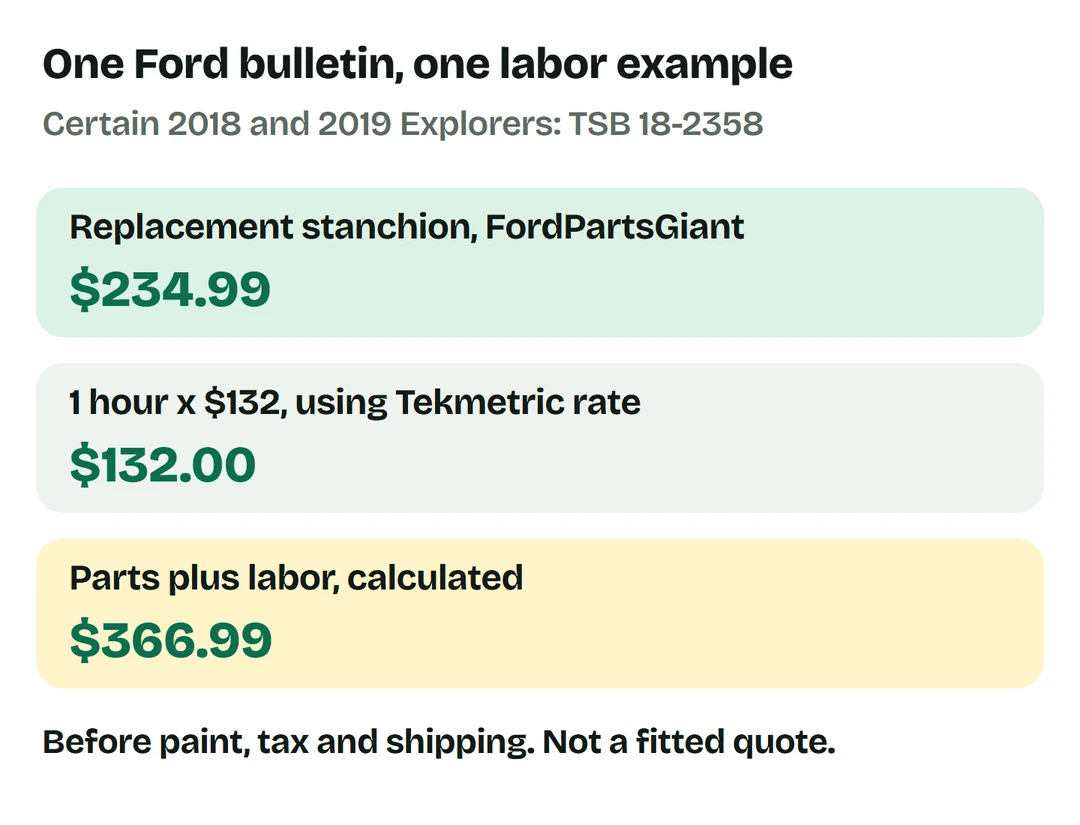

Using Tekmetric’s $132 US average hourly rate, that allowance gives 1 x $132 = $132 in labor.
Add FordPartsGiant’s replacement stanchion and the example is $234.99 + $132 = $366.99 before paint, tax or shipping. This is my parts-plus-labor sum for the bulletin job, not a dealer’s fitted offer.
Collision damage, bent roof metal or wet interior trim can add work outside that bulletin. If your estimate includes replacing the headliner, ask what damage makes that necessary.
What Explorer Owners Reported
These owners reported dealer prices or an expected repair cost. None shared an itemized final invoice.
- A Maryland owner of a 2011 Explorer Limited snapped the antenna’s metal connector backing out of the garage. On September 14, 2012, they posted a $400 dealership repair quote on Explorer Forum, and the dealer said the headliner would need to come out.
- A 2017 Explorer owner whose antenna and GPS housing came off expected to be $650 out of pocket. The NHTSA complaint was filed February 13, 2021.
- Another 2017 Explorer owner was told the detached shark fin piece would be $590 at a Ford dealer, in a complaint filed January 24, 2024. The report does not separate installation from the part.
The first quote is much older than the others. The two newer complaints concern detached housings, while the older one involved a snapped connector. Keep that difference in mind when comparing your own repair.
Before You Buy a Whole Assembly
If the antenna looks intact but satellite radio keeps dropping out, describe that symptom to the shop. Ford’s bulletin checks the symptom and modem equipment before calling for a replacement.
If the shell is missing, have the base, connections and roof seal inspected. A plastic cap, an electrically working antenna assembly and a sound seal are separate things to check.
For the repair quote, ask for the exact part number, paint work and labor separately. You can then compare the same job between a Ford dealer and an independent shop.
Questions About Explorer Roof Antennas
Can I replace just the antenna rod?
Possibly, if the removable mast alone is damaged. A snapped threaded connector or broken base is a different repair. The Ford catalog sells the mast and aerial support separately.
Does Ford’s antenna bulletin mean the repair is free?
No. Bulletin 18-2358 refers to normal vehicle warranty or extended service coverage and does not extend it. Have the dealer check whether your vehicle and repair are covered.
Will a new shark fin arrive in my Explorer’s color?
Not necessarily. FordPartsGiant’s JB5Z-18936-AFPTM listing instructs a 2019 Explorer buyer to have the replacement painted to match.
Is one hour the labor time for every Explorer antenna?
No. Ford’s one-hour allowance is for the specific 2018 and 2019 satellite reception repair above. It is a warranty allowance, and does not include repairing roof damage or painting a replacement.
Where These Prices Come From
- FordPartsGiant, DS7Z-18813-A mast, 2017 Explorer antenna base catalog and JB5Z-18936-AFPTM stanchion, checked October 17, 2026.
- Ford, bulletin 18-2358, December 14, 2018, linked above. Original JB5Z-18936-AV part supersession listing, checked October 17, 2026.
- Tekmetric, average auto repair labor rates by state, checked October 17, 2026.
- Explorer Forum and NHTSA owner accounts, linked and dated above, checked October 17, 2026.
I hope this helps you work out whether you need a mast, a base or a larger repair. If you have a question about your Explorer’s quote, email me at costcheckr@gmail.com.
